An excellent result achieved by Italdibipack R&D team that has gathered all the market requests and transformed them into a winning solution, this new “giant” will make the Dibipack 75125 and Dibipack 85150 models be “retired” thanks to its new dimensions of the sealing bars (850 x 1300 mm) that are able to hold a wider dimensional range of the product.
This new model has the same specifications as the shrink-wrapping machines of the Dibipack line too, but with some peculiarities: such as two hold-down solenoids that keep the hood closed during the working cycle, two fans that grant a better circulation of warm air during shrinking.
The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefin films (GREEN FILM – GOLDEN FILM)
Machine made according to CE rules.

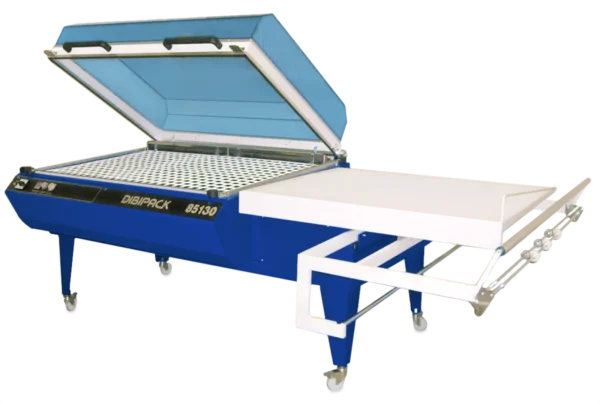

SPECIFICATIONS DIBIPACK 85130
- Power supply: 400 V – 3 Ph + N
- Maximum power required: 8 KW
- Overall machine dimensions L x W x H: 2700 x 1500 x 1400(H) mm
- Working plate height (on stand): 900 mm
- Machine weight: 300 kg
- Sealing area W x L: 850 x 1300 mm
- Maximum product height: 250 mm
- Impulse sealing system: Bottom blade
- Maximum roll dimensions DIA x W: 250 x 1200 mm
- Output: 4 – 6 pcs/min
notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
