Description
- High productions outputs
- Fully automatic working cycle
- Pneumatic working: pneumatic cylinder closes the sealing-bars, this way the conveyor belt starts operating and transfers the product into the shrink tunnel for heat-shrinking.
- Opening and closing of the sealing-bars (with a pedal or automatically), sealing-time and conveyor belt moving time controlled by a timer
- Wide loading table It is possible to adjuste the height of the sealing area according to the product size.
- An efficient safety system guarantees the operator’s hands security, according to the CE regulations
- Automatic outfeed conveyor outside the shrink tunnel
- Shrink tunnel with high performances and low consumptions.
- The shrink tunnel, integrated in the machine structure, is equipped with a stainless conveyor belt with adjustable speed by means of a direct current variator on the control panel. The tunnel itself has shutters for air regulation in order to obtain the best shrinking even in difficult conditions.
- Options available on request: boomerang roller conveyor – Scrap-rewind
- The machine works with PVC (BLUE FILM),polyolefin hot thermo-sealing and also shrinkable films (GREEN FILM –GOLDEN FILM)
Machine made according to CE rules.

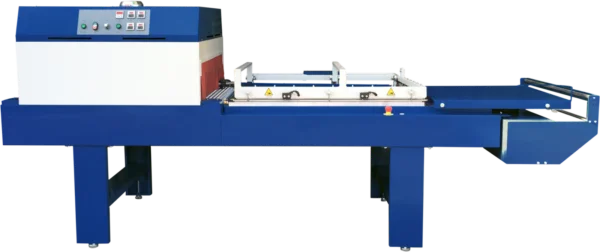

SPECIFICATIONS ESPERT 11580
- Power supply: 400 V – 3 Ph + N
- Power required: 12 KW
- Overall machine dimensions: 3500 x 1400 x 1500 mm
- working table height: 930 mm
- Tunnel entrance dimensions: 820 x 230 mm
- Sealing area dimensions: 1150 x 800 mm
- Max product height: 150 mm
- Impulse sealing system: Superior Blade
- Compressed air consuption: 5 Nl/cycle
- Compressed air pressure: 6 bar
- Output 300 – 700 pz/h
notes: notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
