Description
- Electronic control panel with touch sensitive and intuitive operator interface to set and control all the machine functions in the best and simplest way (conceived by R&D Italdibipack).
- Possibility to memorize several working cycles with personalized parametres.
- Hot sealing bars (transversal and longitudinal) controlled by two independent electronic thermo-regulators.
- Working cycles and parameters setting controlled by microprocessor.
- Teflon coated sealing blade.
- Automatic pack bag length determined through horizontal or vertical photo-eye depending from the product shape.
- Multi-pack function (packing of more units in line).
- Infeed conveyor belt with a continuous or synchronized movement with the sealing bar.
- Counter.
- Motorized film unwinder.
- Micro film performation during the film unwinding.
- Motorized scrap rewinder.
Optional
- AC motor frequency controls to adjust the speed for the different motors (infeed/outfeed conveyors belts – film unwinding – film pulling – scrap rewinder).

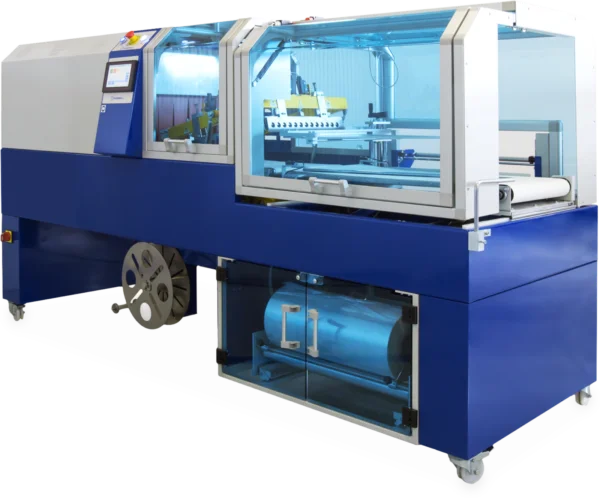

SPECIFICATIONS – MECPACK FIVE STARS COMPACT
- Power Supply: 380 V- 3PH – T – N
- Power required: 9 kW
- Dimensions: 2800 x 950 x 1450(h) mm
- Tunnel entrance dimensions: 750 x 250
- Weight: 700 kg
- Sealing area dimensions: 500 x 400 mm
- Max product height: 120 mm
- Min film widht: 200 mm
- Max film width: 550 mm
- Compressed air consuption: 2,5 Nl/p
- Compressed air pressure: 6 bar
- Output: 1800 pz/h
notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
