NASTROPACK NP 05 EV

NASTROPACK NP 05 EV

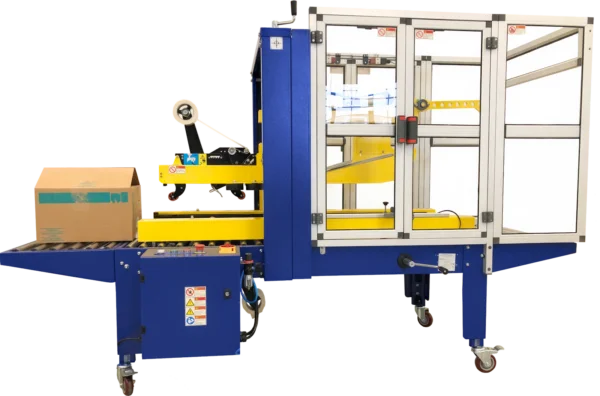

TAPE-SEALER FOR STANDARD-SIZE CARTON BOXES

A machine for the automatic sealing of standard-size carton boxes (units with fixed height and width) with simultaneously sealing of bottom and top flaps of the carton box. An adjustable pneumatic working device assuring the automatic closing of the top flaps gives the possibility to position this machine, not requiring the constant presence of an operator, inside fully automatic packing lines. Two simple and fast manual hand-wheel adjustments allow the setting of the machine to the required box size. The ideal solution for carton boxes with a maximum 48 cm. width and height.

Category:

Description

SPECIFICATIONS – NASTROPACK NP 05 EV

  • Power supply: 230 V – 1 Ph – 50 Hz
  • Power required: 0,6 kW
  • Machine dimensions (LxWxH): 1500x900x1600 mm
  • Machine weight: 280 kg
  • Compressed air consumption: 4 Nl / 6 bar
  • Output: up to 20 pz/min
  • Min length of the cartons: 200 mm
  • Max length of the cartons: 500 mm
  • Min width of the cartons: 120 mm
  • Max width of the cartons: 480 mm
  • Min height of the cartons: 130 mm
  • Max height of the cartons: 480 mm

notes: Technical data subject to variations without prior notice
The output depends on the operator and the type of the package
